Stable Structure Multi - color Filter Inverted Metallurgical Microscope

Name: Stable Structure Multi color Filter Inverted Metallurgical Microscope
Brand: SINOWON
Price: 1 USD

Wholesale Stable Structure Multi - color Filter Inverted Metallurgical Microscope from china suppliers

Brand Name : SINOWON

Model Number : IMS-310

Certification : CE

Place of Origin : DongGuan China

MOQ : 1 set

Supply Ability : 100 sets per month

Delivery Time : 15 days

Packaging Details : Plywood

Eyepiece : High-point , extra wide field eyepiece EW10×/ 20

Objectives : Inifitive Plan achromatic objective 40X/0.6

Viewing Head : Inclined 30°, interpupillary distance 48-75mm

Focusing : Coaxial coarse & fine adjustment, Vertical objective movement , Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation

Mechanical Stage : Plain stage, stage layer Ø110mm, hole Ø10mm,Ø15mm,Ø25mm , Moving range 120X78mm,loading plate 128X86mm

Nosepiece : Quintuple Nosepiece

Illuminator : 6V/30W Halogen Lamp,Adjustable

Color Filter : Yellow, Blue , Green Color Filter, Ground Glass

Power Supply : AC220V/50Hz;110V/60Hz

Contact Now

Stable Structure , Multi - color Filter Inverted Metallurgical Industrial Microscope

Characteristics:

IMS-310 Infinitive Optical System Providing Excellent Optical Functions. With the stable stand structure, advanced stage design and comfortable operation, it is widely used in institute and laboratory to observe and identify the structure of various metal and alloy.

Standard Delivery:

Product Name	Inverted Metallurgical Microscope IMS-310(#431-144)	Code#
Eyepiece	High-point , extra wide field eyepiece EW10×/ 20	431@514
Objectives	Inifitive Plan achromatic objective 4X/0.1 Inifitive Plan achromatic objective10X/0.25 Inifitive Plan achromatic objective20X/0.4(s) Inifitive Plan achromatic objective 40X/0.6	431-614 431-634 431@644 432-654
Viewing Head	Inclined 30°, interpupillary distance 48-75mm	431-504
Focusing	Coaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation	431-704
Mechanical Stage	Plain stage, stage layer Ø110mm, hole Ø10mm,Ø15mm,Ø25mm Moving range 120X78mm,loading plate 128X86mm	431-404
Nosepiece	Quintuple Nosepiece	431-604
Illuminator	6V/30W Halogen Lamp,Adjustable	431-804
Color Filter	Yellow, Blue , Green Color Filter, Ground Glass	432-304
Power Supply	AC220V/50Hz;110V/60Hz	431-814

Optional Accessories:

Product Name	Code#	Product Name	Code#
Infinite Plan Achormatic 5x/0.25	431-664	Infinite Plan Achormatic 80x/0.9	431-684
Infinite Plan Achormatic 100X/0.80	431-694	Mechanical 226x178mm	431-414
1xC-mount(Available for Digital Camera)	431-714	USB Camera USB-A1	484-513

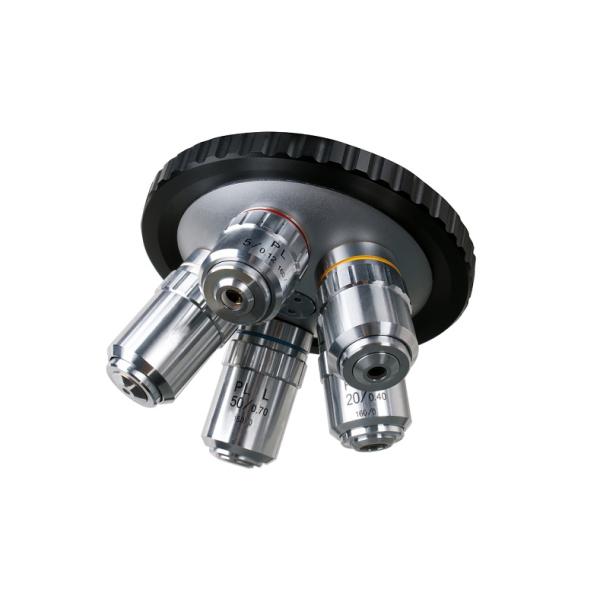

Infinite Plan Achromatic Objectives

Stable Structure Multi - color Filter Inverted Metallurgical Microscope

CCD Camera:

Stable Structure Multi - color Filter Inverted Metallurgical Microscope

USB CMOS Camera

Stable Structure Multi - color Filter Inverted Metallurgical Microscope

Product Tags:

Inverted Metallurgical Microscope

Measurement Microscope

Stable Structure Multi - color Filter Inverted Metallurgical Microscope Images
